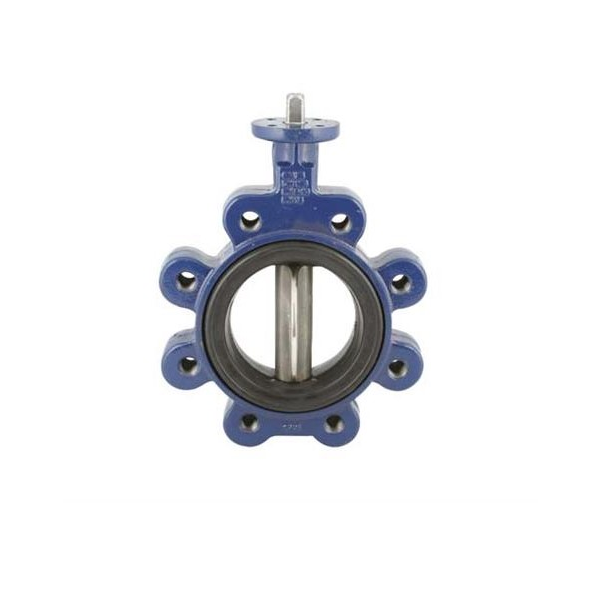

Van bướm- TORK-KV.L 141 SERIES ECONOMIC LUG BUTTERFLY VALVE

0₫

Thương hiệu Khác
Mã SP

Bộ sản phẩm chuẩn

Application	:	Water, air, hot water , non agressive chemicals
Type	:	Lug
Body	:	GG-25 (Cast Iron)
Disc	:	AISI 316 SS , on request GGG 50 Ductile Iron
Seat	:	EPDM , NBR
Shaft	:	AISI 420 SS
Connection Size	:	DN 50 … DN 600
Working Pressure	:	PN 16 , on request PN10
Working Temperature	:	EPDM (-30 , 130 °C) , NBR ( -20 , 80 °C)
Control	:	Handlevel or free shaft for actuator mounting , more than DN 300 standart with gear box

TORK-KV.L 141 Series Wafer Butterfly Valve

Connection Size	Order No	Body	Disc	Seat	Pressure	Temperature
DN50	TORK-KV.L 141.50	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN65	TORK-KV.L 141.65	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN80	TORK-KV.L 141.80	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN100	TORK-KV.L 141.100	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN125	TORK-KV.L 141.125	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN150	TORK-KV.L 141.150	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN200	TORK-KV.L 141.200	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN250	TORK-KV.L 141.250	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN300	TORK-KV.L 141.300	GG-25	AISI 316 SS	EPDM	PN16	-30 +130°C
DN350	TORK-KV.L 141.350	GG-25	AISI 316 SS	EPDM	PN10/PN16	.30 +130°C
DN400	TORK-KV.L 141.400	GG-25	AISI 316 SS	EPDM	PN10/PN17	.-30 +130°C
DN450	TORK-KV.L 141.450	GG-25	AISI 316 SS	EPDM	PN10/PN18	.-30 +130°C
DN500	TORK-KV.L 141.500	GG-25	AISI 316 SS	EPDM	PN10/PN19	.-30 +130°C
DN600	TORK-KV.L 141.600	GG-25	AISI 316 SS	EPDM	PN10/PN20	.-30 +130°C
